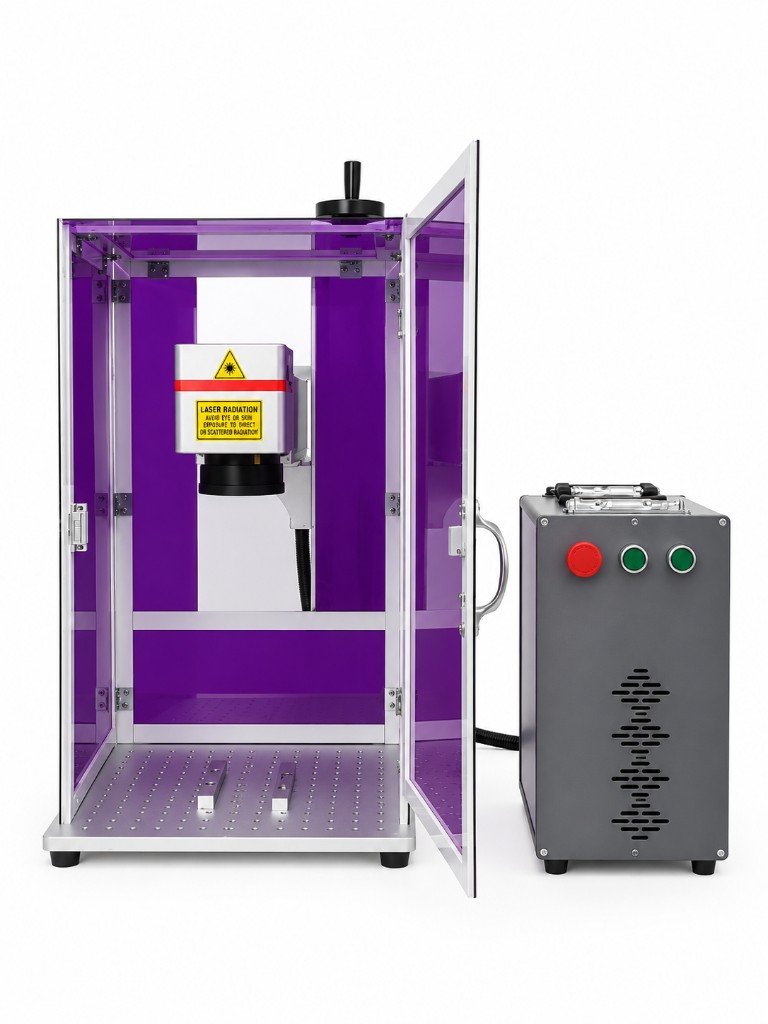

Fiber Laser Marking Machine with Enclosed Marking Chamber
A fiber laser marking setup with a dedicated enclosed marking chamber around the work area. The chamber separates the marking zone from the surrounding workspace while keeping the controller and supporting equipment externally accessible. Same 20–100W, 1064 nm fiber process as desktop.
Best for
- Cells that need the marking zone inside a dedicated chamber
- Layouts where the controller must stay outside the enclosure
- The same fiber process as desktop, with an interlocked marking chamber where the machine supports it
Not for
- An open bench station (desktop)
- The complete workstation housed in a cabinet (Enclosed Fiber)
- Parts that cannot come to a cell (handheld)
- Moving conveyors (fly)
vs siblings
Same fiber wavelength as desktop. This format encloses the marking zone in a dedicated chamber and leaves the controller outside. Enclosed Fiber houses the whole workstation in a cabinet. Desktop stays the open station.
Enclosed Fiber · Desktop fiber · Portable fiber · Fiber family
What is an enclosed marking chamber?
This is a fiber laser marking machine format with an integrated enclosed marking chamber. The chamber surrounds the marking head and work area. It is not an accessory lid on a desktop, and it is not a full cabinet around the entire workstation.
How the chamber works
The door or access panel forms the enclosure around the marking zone. Where the actual machine implementation supports it, operation can be interlocked so the laser runs only when the enclosure is closed. We do not publish a laser class unless a certificate is on the quote.
Machine and controller arrangement
The marking head and work area sit inside the chamber. The controller remains outside the chamber so it stays accessible without opening the marking zone.
Configure the workstation
Built-in AC, fume extraction and workholding are options on this chamber format. They are not separate machines.
-
Integrated AC
Available where controlled operating conditions are required around the source and electronics. Capacity is set on the quote, not from the catalogue photo.
-
Fume extraction
Captures marking fumes or particulates instead of releasing them into the surrounding workspace. Extraction does not replace site ventilation or laser-safety rules.
-
AC + fume extraction
Both can be specified together. Rotary and other workholding stay quote items.
Specs
| Parameter | Value |
|---|---|
| Laser power | 20W / 30W / 50W / 100W |
| Wavelength | 1064 nm ± 5 |
| Marking speed | Up to 15,000 mm/s (file, material and source dependent) |
| Marking field | 70×70 mm to 500×500 mm |
| Min. line width | 0.01 mm |
| Min. character height | 1 mm |
| Repeat accuracy | ±0.01 mm |
| Laser source | IPG / JPT / Raycus / MAX |
| Cooling | Air-cooled |
| Software | EZCAD (standard) / LightBurn where supported |
| Voltage | AC 220V, 50/60 Hz |
| Enclosure | Dedicated marking chamber; controller remains external |
Gallery
Features
- Dedicated chamber around the marking zone, not a full-machine cabinet
- External controller accessible outside the chamber
- Optional integrated AC and fume extraction on the quote
Materials
Steel, stainless, aluminium, brass, copper, titanium, carbide, coated metals, and markable engineering plastics. Confirm coatings with a sample.
Applications and industries
Accessories
Integrated AC, fume extraction, rotary, motorized Z, F-theta lenses — specify on the quote.
Why this model
A fiber marking cell when the marking zone must sit in a chamber and the controller stays outside.
FAQs
- Is this a Class 1 laser?
- We specify an interlocked marking chamber where the machine supports it. We do not publish a laser class unless a certificate is on the quote.
- Is this the same as the Enclosed Fiber cabinet machine?
- No. Enclosed Fiber houses the complete workstation in a cabinet. This page is the chamber around the marking zone, with the controller external.
Need the complete marking workstation enclosed within a machine cabinet? Explore the Enclosed Fiber Laser Marking Machine.
Tell us the metal, the mark, and whether only the marking zone must sit in a chamber.
