Enclosed Fiber Laser Marking Machine
The Enclosed Fiber Laser Marking Machine houses the complete fiber marking workstation inside an enclosed machine structure. It is designed for applications that require a dedicated enclosed setup rather than an open desktop marking station. Same 20–100W, 1064 nm fiber process as desktop.
Best for
- Cells that need the complete marking setup housed in a cabinet
- Installations that want a dedicated enclosed workstation, not an open bench
- The same fiber process as desktop, inside a full machine housing
Not for
- An open bench station (desktop)
- Only the marking zone enclosed, with the controller outside (enclosed marking chamber)
- Parts that cannot come to a cell (handheld)
- Moving conveyors (fly)
vs siblings
Same fiber wavelength as desktop. This format encloses the workstation itself inside a cabinet or housing. The enclosed marking chamber format encloses only the marking zone and keeps the controller external. Desktop stays the open station.
Enclosed marking chamber · Desktop fiber · Gold fiber · Fiber family
What this machine format is

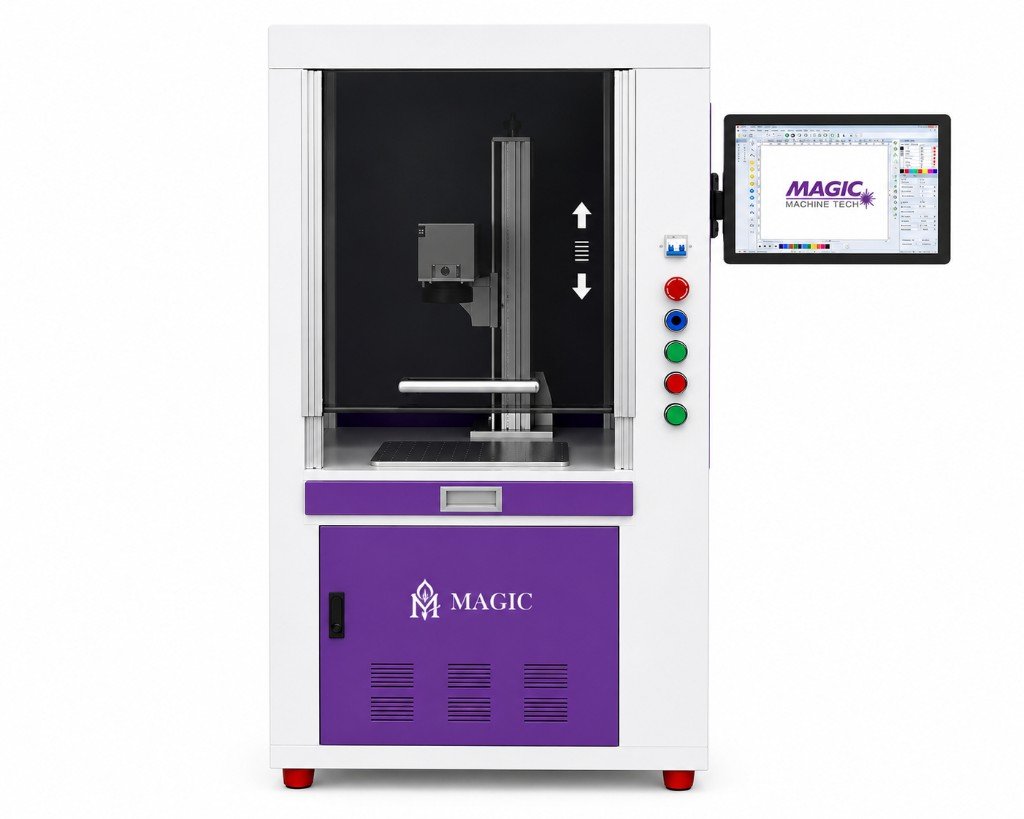

A fully enclosed fiber laser marking workstation designed for applications where the complete marking setup is housed within an enclosed cabinet or machine housing. The machine/workstation itself is enclosed, not merely the marking zone.
How the enclosure is configured
The cabinet or housing contains the marking head, work area and operator interface as one enclosed structure. Access is through the machine door or viewing area. This is a different physical format from a chamber bolted around the marking zone of an otherwise open workstation.
Configure the workstation
Built-in AC, fume extraction and workholding are options on this enclosed cabinet format. They are not separate machines and do not get their own URLs.
-
Integrated AC
Available where controlled operating conditions are required around the source and electronics. Capacity is set on the quote, not from the catalogue photo.
-
Fume extraction
Captures marking fumes or particulates instead of releasing them into the room. Useful in closed cells. Extraction does not replace site ventilation or laser-safety rules, and we do not publish a filtration class from the photograph.
-
AC + fume extraction
Both can be specified together. Rotary and other workholding stay quote items.
Specs
| Parameter | Value |
|---|---|
| Laser power | 20W / 30W / 50W / 100W |
| Wavelength | 1064 nm ± 5 |
| Marking speed | Up to 15,000 mm/s (file, material and source dependent) |
| Marking field | 70×70 mm to 500×500 mm |
| Min. line width | 0.01 mm |
| Min. character height | 1 mm |
| Repeat accuracy | ±0.01 mm |
| Laser source | IPG / JPT / Raycus / MAX |
| Cooling | Air-cooled |
| Software | EZCAD (standard) / LightBurn where supported |
| Voltage | AC 220V, 50/60 Hz |
| Enclosure | Complete marking workstation in an enclosed cabinet or machine housing |
Gallery
Features
- Full machine housing around the fiber marking workstation
- Same fiber sources and wattage range as the desktop format
- Optional integrated AC and fume extraction on the quote
Materials
Steel, stainless, aluminium, brass, copper, titanium, carbide, coated metals, and markable engineering plastics. Confirm coatings with a sample.
Applications and industries
Accessories
Integrated AC, fume extraction, rotary, motorized Z, F-theta lenses — specify on the quote.
Why this model
A fiber marking cell when the complete workstation must sit inside a dedicated machine housing.
FAQs
- Is this a Class 1 laser?
- We specify an enclosed machine housing. We do not publish a laser class unless a certificate is on the quote.
- Is this the same as a marking chamber with an external controller?
- No. That is a different format. This page is the full enclosed workstation. The chamber-only layout is the Fiber Laser Marking Machine with Enclosed Marking Chamber.
Looking for a setup where only the marking zone is enclosed? Explore the Fiber Laser Marking Machine with Enclosed Marking Chamber.
Tell us the metal, the mark, and whether the whole workstation must sit in a cabinet.
